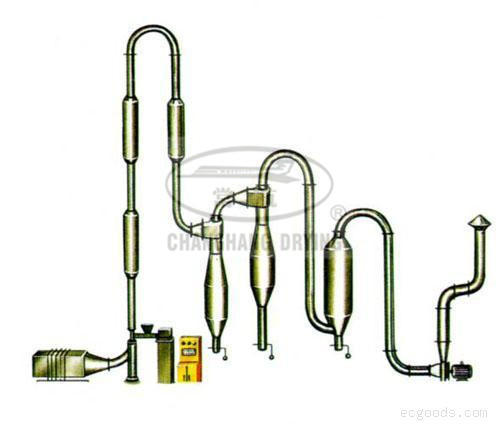

QG Series Airstream Dryer
Product Name:QG Series Airstream Dryer
Details
Description
QG air streams pulse drier is a large quantity production drier, it adopt instant drying principle, utilize hot air’s quick move to drive damp raw mater ial and make i t floats in the hot air, this can strengthen the whole drying process, improve the speed of hot exchange. If raw material is dried by this equipment , non-combined moisture can be removed completely (for example: raw material moisture containing near 40% before drying, f inished products water containing just at 13.5%), dried material never metamorphosed , compared with general drier, output is remarkably raised.
Application
This equipment is widely used for drying granule and powder.It can dehydrate wet materials in the area of chemical, foodstuff, pharmacy, construction materials, plastic etc, for example: starch, fish powder, salt, lees, gluten, feed, plastic resin, coal powder, A.B.C benzoic acid, 2,3 acid, PVC,polypropylene, sodium sulfate, sodium pyrosulfite.
Features
QG pulse air steam drier of our company introduces into the most advanced techniques and machines from the United Slates, has reached the advanced level of international, the equipment has many advantages listed below high in automatic degree, 1ittle in investment, low in energy consumption, little occupy in air of factory and work power, wide in applied surface, it is a perfect modern equipment.
Technical parameters
Model | QG-50 | QG-100 | QG-250 | QG-500 | QG-1500 | |
Name Parameter | ||||||
Water evaporation | kg/h | 50 | 100 | 250 | 500 | 1500 |
Air filter |
Area(m2) | 4 | 6 | 18 | 36 | 60 |
Amount | 1 | 1 | 1 | 2 | 2 | |
Exchange time(h) | 200(Bag) | 200(Bag) | 200(Bag) | 200(Bag) | 200(Bag) | |
Heater | Area(m2) | 30 | 43 | 186 | 365 | 940 |
Consume of steam(kg) | 120 | 235 | 450 | 972 | 2430 | |
Work pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
Ventilator | Model | 9-19-4.5A | 9-19-5A | 9-26-5.6A | 9-26-9D | 9-26-14D |
Amount(Set) | 1 | 1 | 1 | 2 | 4 | |
Power (kw) | 5.5 | 11 | 22 | 37 | 90 | |
Feeding machine | Amount of transportation(kg/h) | 150 | 290 | 725 | 1740 | 4350 |
Control mode | Electromagnetic Speed-Adjusting Motor | Electromagnetic Speed-Adjusting Motor | Electromagnetic Speed-Adjusting Motor | Electromagnetic Speed-Adjusting Motor | Electromagnetic Speed-Adjusting Motor | |
Power (kw) | 1.1 | 1.5 | 3 | 4 | 5.5 | |
Cyclone separator | Model | CLK-350-400 | CLK-500-450 | ZF12.5 | ZF12.5 | |
Efficiency(%) | 98 | 98 | 98 | 98 | ||
Amount | 2 | 2 | 2 | 3 | ||
Bag filter | Amount | 1 | 1 | 1 | 1 | 1 |
Consume of compress air(m3/h) | 3.6-20.0 |
All dates are used for reference only. According to the condition of material.
