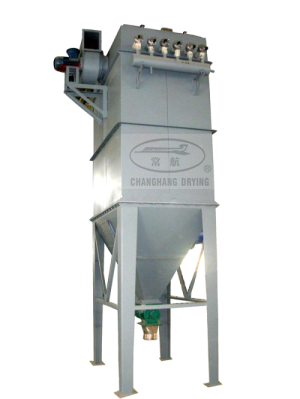

MC-II Series Pulse Dust Filter With Cloth Bag

Product Name:MC-II Series Pulse Dust Filter With Cloth Bag

Keywords:
Overview:On the basis of MC-Ⅰtype, the square type pulsedust filter with cloth bag MC-Ⅱ is the amended and improved one. In addition to the advantages that type is high in the dust removing efficiency, big in the air capacity.

Details

Descriptions
On the basis of MC-Ⅰtype, the square type pulsedust filter with cloth bag MC-Ⅱ is the amended and improved one. In addition to the advantages that type is high in the dust removing efficiency, big in the air capacity, stable in the performance, easy in operation and maintenance, MC-Ⅱ has the better result than MC-Ⅰ. Such as: it is not easy to build up the powder and its application is wide and so on. The device is widely used for the ventilation, dust removing and powder restoration in the grain, food, feed, metallur-gical, chemical, building material, medical and other industries.


General applications

1.The air stream containing dust passes through low box from air inlet parts of it deposit when light particle dust is floated, it is retarded in the bag. The purified air penetrates the filtering bag and passes into the up box through Venturi tube and exhausts from outlet.

2.The accumulated powder dust on the outer wall of filtering bag is increased continuously. If the resistance reaches the limit range (in generally, it should be 80-120mm H2O), it is necessary to clean the accumulated powder dust. The clean method is as follows: controlller touches off each control value in order. It makes the compressed air inside the gas bag sprays out through nozzles (the 1st wind). Using Venturitube, several times of air around it (the 2nd wind) enters into the bag and makes the filtering bag expand rapidly at momentlyary and accompany and with the counter action of air stream. This makes the dust drop into dust gate and discharge outside the machine.

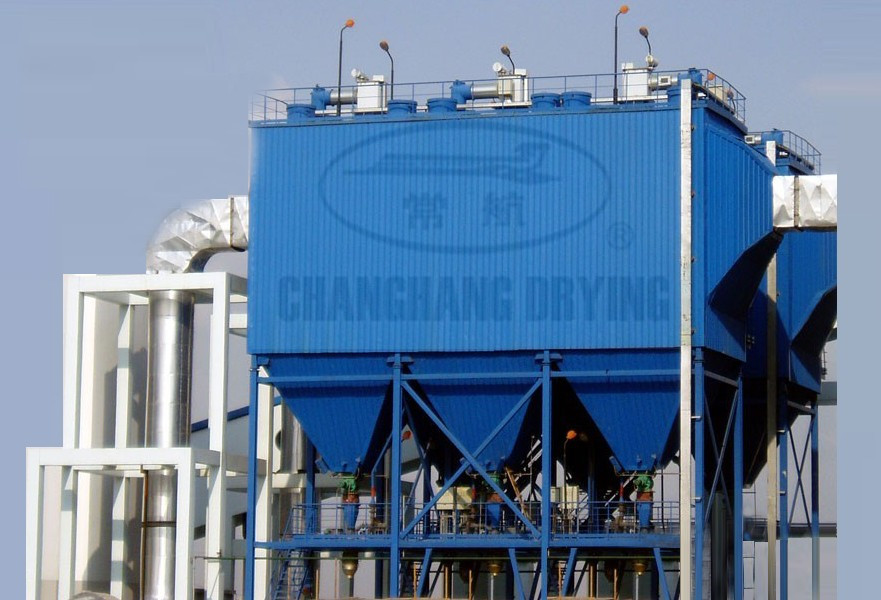

Assembly type



Technical parameters

Parameter\Type BLM24 BLM36 BLM48 BLM60 BLM72 BLM84 BLM96 BLM120
Filtering area (m2) 18 27 36 45 54 63 72 90
Filtering bag number (只) 24 36 48 60 72 84 96 120
Filtering air speed (m/min) 2-4 2-4 2-4 2-4 2-4 2-4 2-4 2-4
Filtering air volume (m3/h) 2160-
4300
3250-
6480
4320-
8630
5400-
10800
6450-
12900
7550-
15100
8650-
17300
10800-
20800
Max.Overall dimension mm Long 1000 1400 1800 2200 2600 3000 3560 4360
Wide×High 1450×3660
Dust remover Pulse valve number 4 6 8 10 12 14 16 20
Compressed air consumption m3 0.07-
0.30
0.11-
0.40
0.15-
0.05
0.18-
0.60
0.22-
0.60
0.25-
0.90
0.29-
0.90
0.37-
0.90
Compressed air pressure kg/cm2 3-6

All dates are used for reference only. According to the condition of material.
