FG Series Airsteam Dryer

Product Name:FG Series Airsteam Dryer

Keywords:FG Airsteam Dryer, Airsteam Dryer
Overview:FG series airsteam dryer is used for drying granule and powder raw materials for foodstuff, chemical, pharmaceutical and construction materials and so on.

Details

Principle

The working principle is as follows: the drying of raw material is divided into two steps. First, raw material is dried with the mixing air of the tail air from second drying and hot air at the condition of positive pressure. The dried tail air is discharged to open air. Second, the dried semi-finished product is carried second drying with fresh air. The finished product is measured and packaged. Used high temperature and pressure tail air is used for the first grade drying. In this way, the good circulating process is completed. The supplementary hot air may be adjusted freely. Therefore the machine has a wide adaptability.



Application

The equipment is widely used for drying granule and powder raw materials for foodstuff, chemical, pharmaceutical and construction materials industries. The products used the equipment for drying are as follows: starch, glucose, fish powder, sugar, edible sugar, lees, feed, plastic resin, coal powder, dyestuff and so on.

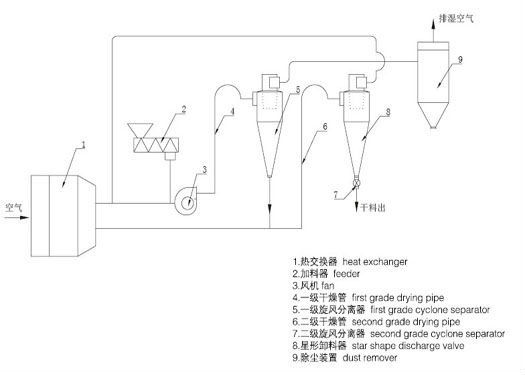

Process Chart

Process chart


Technical parameters

spec
moisture to be
evaporated(kg/h)
power kw
 occupied area m2
heat efficiency(%)
FG0.25
113
11
3.5x2.5
>70
FG0.5
225
18.5
7x5
>70
FG0.9
450
30
7x6.5
>70
  FG1.5
675
50
8x7
>70
FG2.0
900
75
11x7
>70
FG2.5
1125
90
12x8
>70
FG3.0
1150
110
14x10
>70
FG3.5
1491
110
14x10
>70

All dates are used for reference only. According to the condition of material.
